1991 Chevy Blazer

(My old blazer)



Amanda & Brandy Driving 10-2003

07-05-2004

03-27-2004

Blazer as of 02-28-2004

Blazer as of 02-17-2004

New steering stabilizers installed.

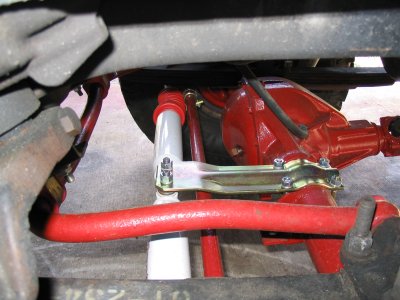

Stabilizer center brace

Blazer as of 01-31-2004

3 Inch body lift comparison shots

Scott and the blazer

Blazer Axle Change Pictures

4x4 Trip in Port St John, Florida

The General Lee

06-15-2003

Danny's Blazer and mine

As of 06-03-2003

Xenon fender flares installed.

Installation took about 3 hours. They are heavy duty and seem pretty tough.

The blazer with its new 35 inch BF Goodrich Tires

Older shots of the blazer below

Steve and Scott

Louie and Scott

Scott Daniel Brian and Louie

David John Scott Louie

Scott David Daniel Brian

350 V8 Silverado package

Last model year of this style Blazer from Chevrolet

Before the new paint job!

33 inch tires 4 inch suspension lift

Steven and Scott

David touching my blazer...hahaha

Shadow checking out my blazer

Not my Blazer but very close. Just a cool shot of it without the top.

Burgundy interior, bucket seats, fold down rear seat, a/c, stereo and cd changer.

Earnhardt front light up tag

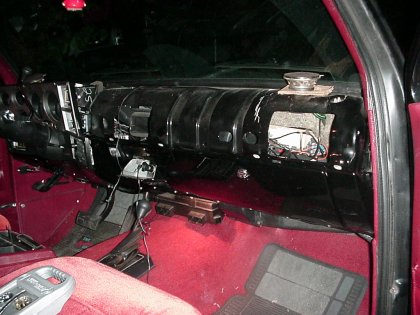

My blazer in pieces. Rewiring speakers and new stereo.

My blazer being towered by Brians 1998 Chevy pickup.

Still with the 33 inch tires, going to be adding 35 inch BF Goodrich very soon.

In my driveway

Before the new headlight grills installed.

Thanks for looking.





The DRAC speed module

Here is the DRAC re-solder and complete.

The tranny shifts a whole lot smoother now. Speed is different so I know I am closer to being correct.

I am sure there are many other changes that has occurred being correct again.

Thank you everyone at www.coloradok5.com for your help!!!

Click these two links below for info on the DRAC. Without them this would not have been possible at all!!!!!!

http://614streets.com/drac.html

http://www.philter.com/cgi-bin/drac.pl

Parts List and Exploded Diagrams



Year: 1991 Production Total: 7,332
Base Price: 17,590 Weight: 4,507
Wheel Base: 106.5 in. Fuel Tank Capacity: 26-gallon/31- gallon
Length: 184.8 in. Height: 73.4 in.
Std. Engine, (HP):

OHV Eight-cylinder 350 cid. (210) @ 4000 rpm

Opt. Engine, (HP):

OHV Diesel Eight-cylinder 379 cid. (130) @ 3600 rpm

Rear Axle:

GM Corporate 10-bolt (8.5-in. 1.28 Axle Dia. 30 Spline)

Front Axle:

GM Corporate 10-bolt (8.5-in. 1.28 Axle Dia. 30 Spline)

Transmission (M):

SM465 4 spd. (6.55:1 First Gear)

Transmission (A):

4L60 * (3.06:1 First Gear)

Transfer Case (M):

NP241 (2.72:1 Low Range)

Transfer Case (A):

NP241 (2.72:1 Low Range)

Notes:

* The 700R4 was re-named to 4L60 in 1991.

The TBI (throttle body injection) system used on the Blazer's standard 5.7-liter V-8 had longer throttle shaft bearings, new throttle return springs, and improved fuel mixture distribution.  The 5.7-liter V-8 also had new heavy-duty intake valves and powdered metal camshaft sprockets.

Standard on all engines was a lighter more powerful 100-amp CS130 alternator.

Two new exterior colors, Brilliant Blue and Slate Metallic were offered.

Blazers featured a steel half-cab with an integral roll bar built into the steel front compartment roof and lock pillar structures.

Thanks to www.coloradok5.com for the specs, check them out below.
